Suzuki GSXR-750 | 2001-2022

• Increased torque
• Improved throttle response
• Improved fuel efficiency
• Direct OEM replacement
• Made in USA

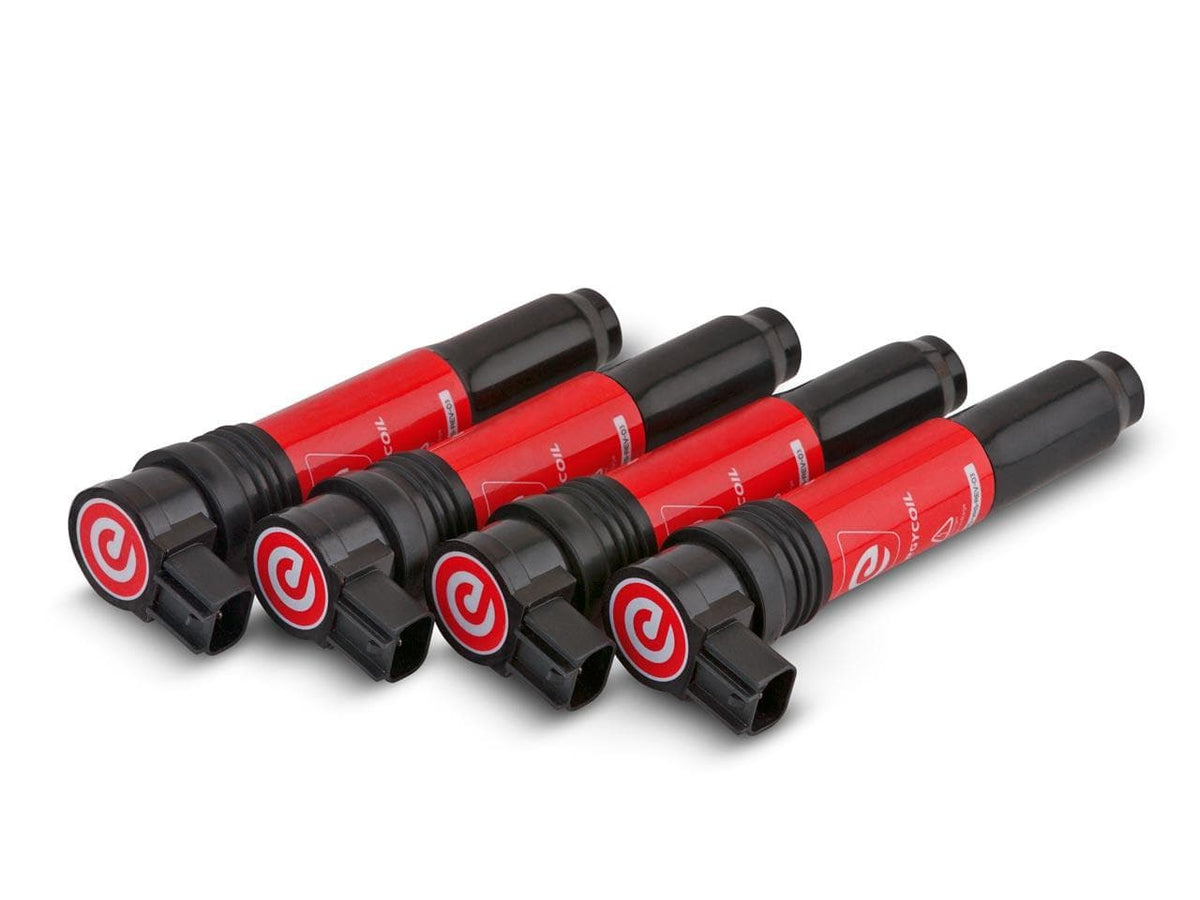

The race inspired and developed Suzuki GSXR-750 is built for speed and performance. Following the essence of the GSXR-750 we developed the hi-performance Energycoil to match it's DNA. Armed with the Peak Power Core the Energycoil generates significantly higher voltage charges and delivers a rich powerful flow of energy and delivers higher transfer rates with a CNC milled profile that matches the profile of a spark-plug. Energycoil improves throttle response and delivers a smoother idle that you can feel and not only do achieve better performance but you also get increased fuel efficiency, lowered emissions strong spark gains throughout the entire rpm range. Let Energycoil put the Super Spark into your Superbike!

Electrical Specifications

• Primary resistance: 1.2 ohms
• Primary inductance: 2.4 mH
• Secondary resistance: 12.5K ohms
• Secondary inductance: 12.9 H
• Test voltage: 13.5V
• Dwell time to achieve test current: 1.3ms=5.2A, 2.1ms=7.6A
• Secondary available voltage: 25.2Kv @ 5.2A, 42.8Kv @ 7.6A
• Secondary peak gap current: 72.4mA @ 5.2A, 105.8mA @ 7.6A
• Spark duration: 0.910@ 5.2A, 1.435ms @ 7.6A
