Energycoil

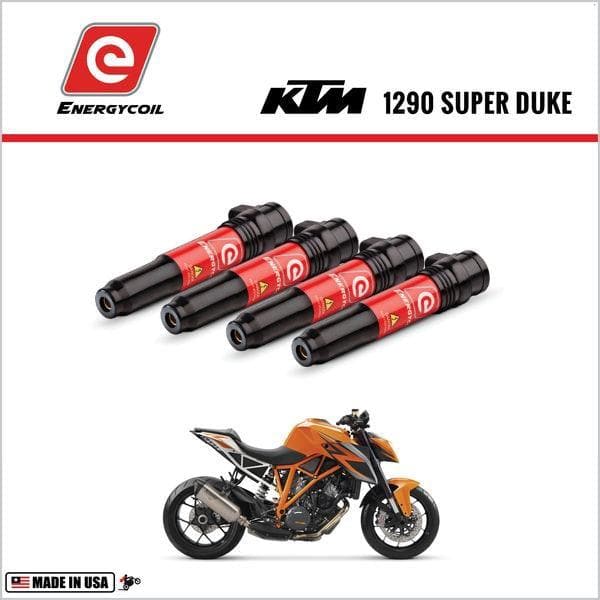

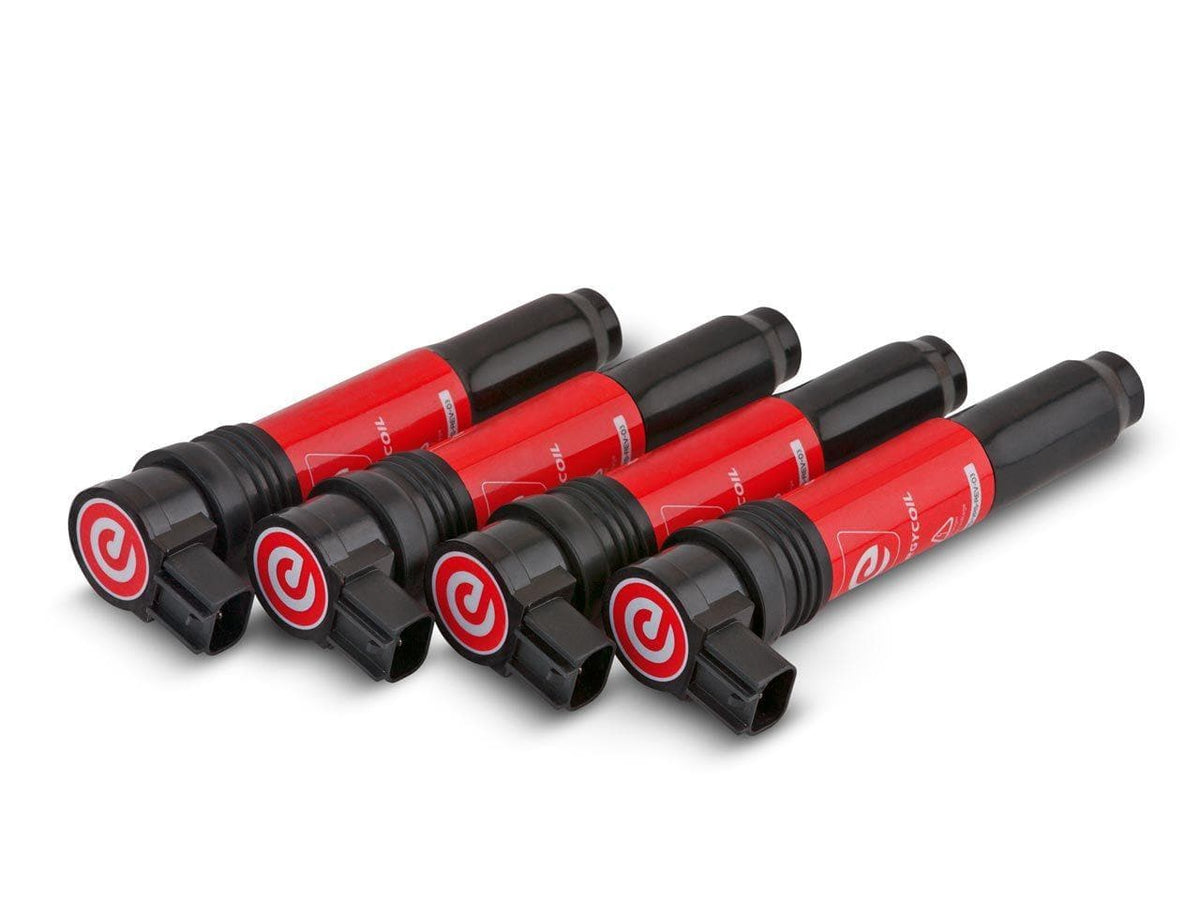

ECSB-KT-1290SD-14

KTM Super Duke R 1290 | 2014-2015

  • Increased horsepower
  • Increased torque
  • Improved throttle response
  • Improved fuel efficiency
  • Direct OEM replacement
  • Made in USA

MORE PERFORMANCE

power-core

POWER CORE

Get the best performance out of your engine with a hotter, longer and more powerful spark. By releasing up to 40% more voltage than other coils Energycoil helps to ignite fuel with increased intensity to deliver impressive performance gains and increased engine response.

STRONGER CONNECTIONS

power_grip-plug

POWER GRIP

Transfer more energy effectively with beefy connectors that match the profile of a spark-plug terminal for greater surface contact and extremely efficient energy transfers that help improve electrical transfer efficiency by up to 45%.

BETTER PROTECTION

energy-shield

ENERGY SHIELD

Keep more energy on tap with protection against energy leakage and spark flash-over. By using the latest advancements in manufacturing technology we created a shield around the Power Core that not only focuses more energy down to the spark-plug but also serves as a powerful shield that helps to eliminate electrical interference.

SIMPLE INSTALLATION

PLUG & PLAY

Energycoil is designed to directly replace your original stick coils without any modifications. Adding Energycoil to your engine is one of the easiest ways to increase performance , improve engine response and lower fuel consumption.



Electrical Specifications


  • Primary resistance: 1.2 ohms
  • Primary inductance: 2.4 mH
  • Secondary resistance: 12.5K ohms
  • Secondary inductance: 12.9 H
  • Test voltage: 13.5V
  • Dwell time to achieve test current: 1.3ms=5.2A, 2.1ms=7.6A
  • Secondary available voltage: 25.2Kv @ 5.2A, 42.8Kv @ 7.6A
  • Secondary peak gap current: 72.4mA @ 5.2A, 105.8mA @ 7.6A
  • Spark duration: 0.910@ 5.2A, 1.435ms @ 7.6A
